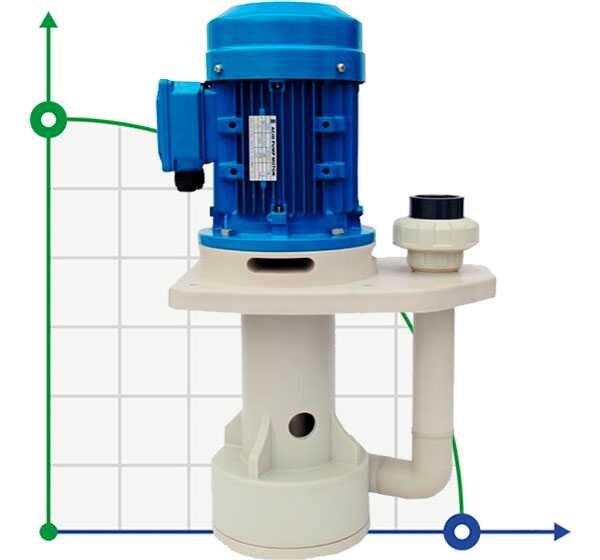

QHA-40SK-5, PP, 3,7 kW, 500L / min, 25m vertical centrifugal alkali pump

Code: 1023086
(0 review)
ProducerQeehua
MaterialPP
Max. head, m25
PumpTypesemi-submersible
Output pipe diameter40
Input pipe diameter50
Max.temperature, C70
Weight, kg41
Flow rate, l/min500
Max.flow rate, m3/h30
Pump capacity, cu.m/hour30
Serial number of the pumpQHA
Drive Typeelectric
Feed height, m25
ModelQHA-50SK-3,7kW
Power capacity, kW3,7
Dimensions, mm390x270x818
Power supply3х380 V, 50 Hz
Type of configurationwith engine
Installation Typevertical
Length of immersed part433
Show all features (21)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$2,387.73 (netto)
Добавить в сравнение
We deliver anywhere in the world
Pump for electroplating, electrolytes, acids, alkali semi-submersible or external installation, electrolyte, preparation of SIP (Sip), aggressive liquids-also found wide application in filtration installations, purification of chemically active acids, alkalis. QHA vertical centrifugal pump. Material: PP is a block copolymer of propylene and ethylene with a very high polyethylene content. Pump installation-semi-submersible, external installation. The semi-submersible pump can be installed outdoors or in a convenient place, which allows you to provide the filtration supply system with compact dimensions, convenient maintenance and control. Pump materials, depending on the technology requirements, are presented in various options for selection. - extended warranty - maintenance and delivery of spare parts It can be equipped with an explosion-proof ex engine. Control the temperature regime when mixing chemical liquids to prevent pump failure.
ProducerQeehua
MaterialPP
Max. head, m25
PumpTypesemi-submersible
Output pipe diameter40
Input pipe diameter50
Max.temperature, C70
Weight, kg41
Flow rate, l/min500
Max.flow rate, m3/h30
Pump capacity, cu.m/hour30
Serial number of the pumpQHA
Drive Typeelectric
Feed height, m25
ModelQHA-50SK-3,7kW
Power capacity, kW3,7
Dimensions, mm390x270x818
Power supply3х380 V, 50 Hz
Type of configurationwith engine
Installation Typevertical
Length of immersed part433
