Chemical pump for alkali,acid, filtration, electrolyte, electroplating, hypochloride, nitric acid, SIP preparation, aggressive liquids.

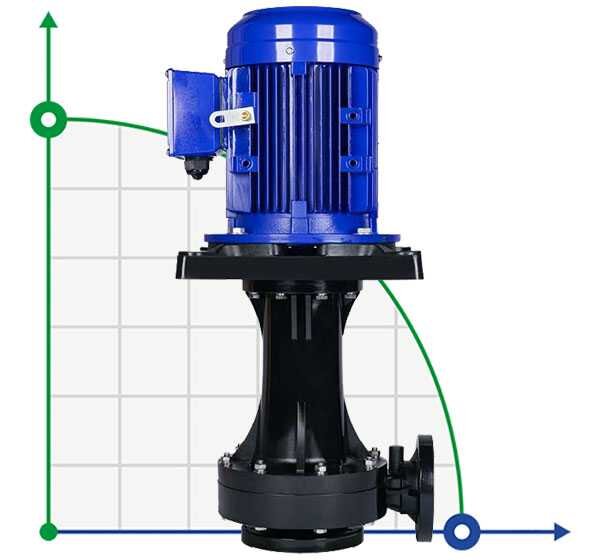

Vertical centrifugal pump QHD-50SK, GFRPP-2,2 kW, 530L/min, 21,9 m, Kingdom motor.
Material: GFRPP
Pumps are also widely used in filtration and purification plants for chemically active acids and alkalis. It is suitable for all types of special cases, such as circulation of strong acid, alkaline liquid, cooling, cleaning equipment, waste gas condensers, etching machine, chemical coating - electroplating baths, pumping of electrolytics, non-electrolytic nickel. The pump uses a dry shaft seal, which can be used without damage at idle.
This series of pumps uses reinforced plastic F-FRPP, G-GFRPP, P-PVDF.The method of manufacturing pump parts is pressure casting.
SUS304 and titanium shafts can be selected as the motor shaft.
Pump installation-semi-submersible, external installation. The semi-submersible pump can be installed outdoors or in a convenient place, which allows you to provide the filtration supply system with compact dimensions, convenient maintenance and control. Pump materials, depending on the technology requirements, are presented in various options for selection.
- extended warranty
- maintenance and delivery of spare parts
It can be equipped with an explosion-proof ex engine.
Control the temperature regime when mixing chemical liquids to prevent pump failure.
