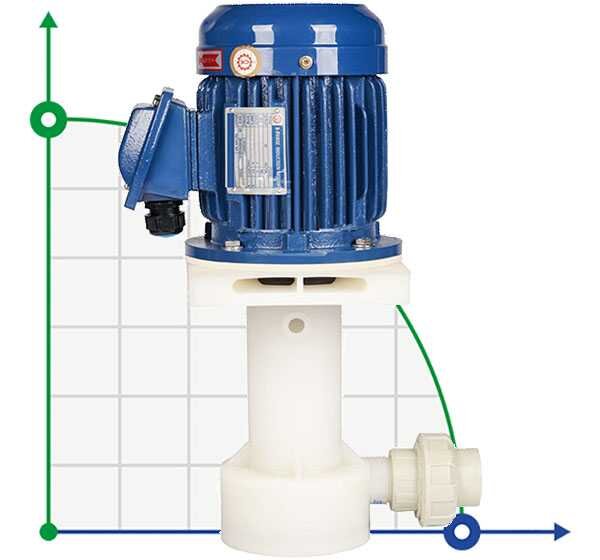

QP-20SK, GFRPP-0,12 kW, 60 l/min, 3M chemical pump

Code: 1023090
(0 review)
ProducerQeehua
MaterialGFRPP
Max. head, m3
PumpTypesemi-submersible
Output pipe diameter20 mm
Input pipe diameter25 mm
Max.temperature, C70
Weight, kg4
Max.flow rate, m3/h3.6
Pump capacity, cu.m/hour3.6
Serial number of the pumpQP
Drive Typeelectric
Feed height, m3
ModelQP-20SK-0,12kW
Power capacity, kW0,12
Dimensions, mm146x165x380
Power supply3х380 V, 50 Hz
Type of configurationwith engine
Installation Typevertical
Length of immersed part224
Show all features (20)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$577.15 (netto)
Добавить в сравнение
We deliver anywhere in the world
Pump for electroplating, electrolytes, acids, alkali semi-submersible or external installation, electrolyte, preparation of SIP (Sip), aggressive liquids-also found wide application in filtration installations, purification of chemically active acids, alkalis. Vertical centrifugal pump QP-20SK, GFRPP-0,12 kW, 60L/min, 3m. Material: GFRPP Pump installation-semi-submersible, external installation. The semi-submersible pump can be installed outdoors or in a convenient place, which allows you to provide the filtration supply system with compact dimensions, convenient maintenance and control. Pump materials, depending on the technology requirements, are presented in various options for selection. - extended warranty - maintenance and delivery of spare parts It can be equipped with an explosion-proof ex engine. Control the temperature regime when mixing chemical liquids to prevent pump failure.
ProducerQeehua
MaterialGFRPP
Max. head, m3
PumpTypesemi-submersible
Output pipe diameter20 mm
Input pipe diameter25 mm
Max.temperature, C70
Weight, kg4
Max.flow rate, m3/h3.6
Pump capacity, cu.m/hour3.6
Serial number of the pumpQP
Drive Typeelectric
Feed height, m3
ModelQP-20SK-0,12kW
Power capacity, kW0,12
Dimensions, mm146x165x380
Power supply3х380 V, 50 Hz
Type of configurationwith engine
Installation Typevertical
Length of immersed part224
