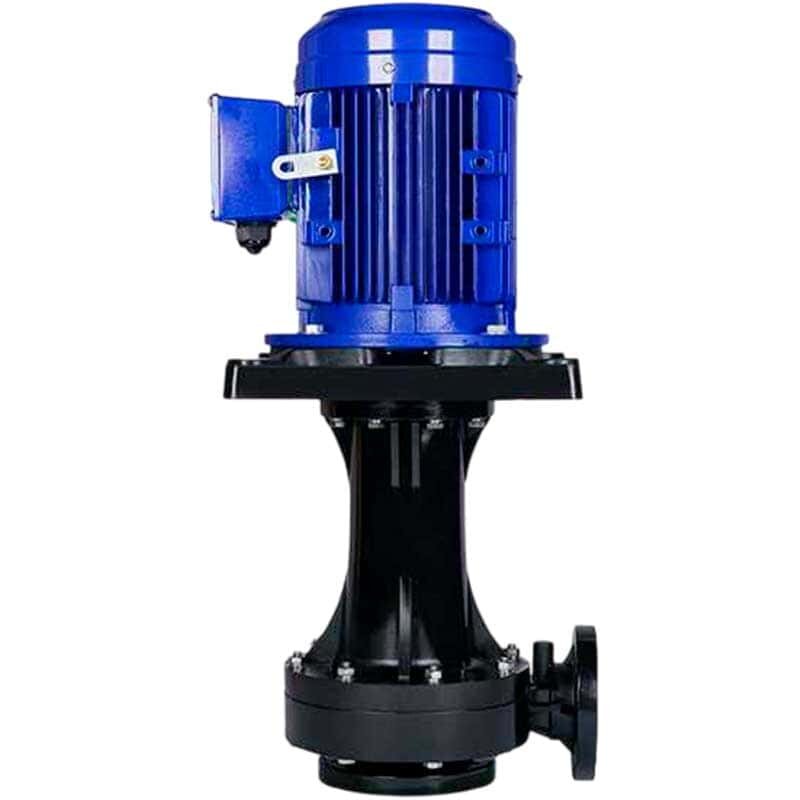

Vertical plastic chemical pump QHD-65SK-55EGV38KABS-3801, GFRPP, 853L/min, 24m, 4kW, 380V

Code: 1052188
(0 review)
ProducerQeehua
MaterialGFRPP
Max. head, m24
PumpTypesemi-submersible
Output pipe diameter65
Input pipe diameter80
Max.temperature, C70
Weight, kg44,5
Flow rate, l/min853
Max.flow rate, m3/h51.18
Pump capacity, m3/h51.18
Serial number of the pumpQHD
Drive Typeelectric
Feed height, m24
Power capacity, kW4
Power supply3х380 V, 50 Hz
Material of O-ringEPDM
Type of configurationwith engine
Installation Typevertical
Length of immersed part425
Show all features (20)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$1,656 (netto)
Добавить в сравнение
We deliver anywhere in the world
Chemical pump for alkalis, acids, filtration, electrolytes, electroplating, hypochlorite, nitric acid. Material: GFRPP The pumps have also found wide application in filtration plants, purification of chemically active acids, alkalis. It is suitable for all kinds of special cases, such as circulation of strongly acidic, alkaline liquid, cooling, purification equipment, exhaust gas condensers, pickling machine, chemical coating - electroplating baths, pumping electrolytes, non-electrolytic nickel. The pump uses a dry shaft seal, which can be used without damage at idle. This series of pumps uses reinforced plastic F-FRPP, G-GFRPP, P-PVDF. The manufacturing method of pump parts is injection molding. SUS304 and titanium shafts can be selected as the motor shaft. Pump installation is semi-submersible, external installation. The semi-submersible pump can be installed from the outside or in a convenient place, which allows you to provide a filtration system with compact dimensions, convenient maintenance and control. Pump materials, depending on the requirements of the technology, are presented in various options for selection. - extended warranty - service and supply of spare parts It is possible to equip with an explosion-proof Ex motor. Control the temperature when mixing chemical liquids to prevent pump destruction.
ProducerQeehua
MaterialGFRPP
Max. head, m24
PumpTypesemi-submersible
Output pipe diameter65
Input pipe diameter80
Max.temperature, C70
Weight, kg44,5
Flow rate, l/min853
Max.flow rate, m3/h51.18
Pump capacity, m3/h51.18
Serial number of the pumpQHD
Drive Typeelectric
Feed height, m24
Power capacity, kW4
Power supply3х380 V, 50 Hz
Material of O-ringEPDM
Type of configurationwith engine
Installation Typevertical
Length of immersed part425
