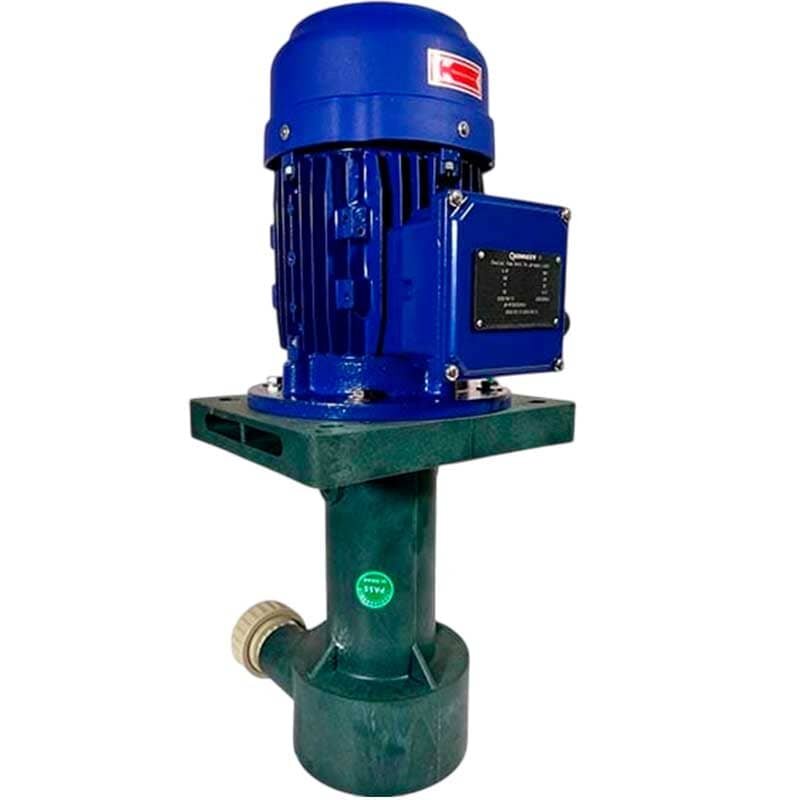

Plastic pump for acids QP-40SK-25EGV38KABS-3801, GFRPP, 245L/min, 16m, 1.5kW, 380V

Code: 1052189
(0 review)
ProducerQeehua
MaterialGFRPP
Max. head, m16
PumpTypesemi-submersible
Output pipe diameter40 mm
Max.temperature, C70
Weight, kg19,7
Flow rate, l/min245
Max.flow rate, m3/h14.7
Pump capacity, m3/h14.7
Serial number of the pumpQP
Drive Typeelectric
Feed height, m16
Power capacity, kW1,5
Power supply3х380 V, 50 Hz
Material of O-ringEPDM
Type of configurationwith engine
Installation Typevertical
Show all features (18)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$1,122 (netto)
Добавить в сравнение
We deliver anywhere in the world
Pump for electroplating, electrolytes, acids, alkalis semi-submersible or external installation, electrolyte, preparation of SIP (SIP), aggressive liquids - also found wide application in filtration installations, purification of chemically active acids, alkalis. Pump installation - semi-submersible, external installation. The semi-submersible pump can be installed from the outside or in a convenient place, which allows to provide a filtration supply system with compact dimensions, convenient maintenance and control. Pump materials, depending on the requirements of the technology, are presented in various options for selection. - extended warranty - service and supply of spare parts It is possible to equip with an explosion-proof Ex engine. Control the temperature regime when mixing chemical liquids to prevent pump destruction.
ProducerQeehua
MaterialGFRPP
Max. head, m16
PumpTypesemi-submersible
Output pipe diameter40 mm
Max.temperature, C70
Weight, kg19,7
Flow rate, l/min245
Max.flow rate, m3/h14.7
Pump capacity, m3/h14.7
Serial number of the pumpQP
Drive Typeelectric
Feed height, m16
Power capacity, kW1,5
Power supply3х380 V, 50 Hz
Material of O-ringEPDM
Type of configurationwith engine
Installation Typevertical
