| Producer | BTS Engineering |
| Material | cast iron |
| Max. head, m | 5 |
| PumpType | submersible drainage and fecal |
| Output pipe diameter | 500 mm |
| Material of flow channel | cast iron |
| Max.flow rate, m3/h | 2200 |
| Pump capacity, cu.m/hour | 2200 |
| Availability of spare parts | yes |
| Serial number of the pump | WQ |
| Drive Type | electric |
| Feed height, m | 5 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 55 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 960 |
| Application | КНС, отведения стоков, септика, канализации, treatment facilities |
| Producer | BTS Engineering |
| Material | cast iron |
| Max. head, m | 5 |
| PumpType | submersible drainage and fecal |
| Output pipe diameter | 500 mm |
| Material of flow channel | cast iron |
| Max.flow rate, m3/h | 2200 |
| Pump capacity, cu.m/hour | 2200 |
| Availability of spare parts | yes |
| Serial number of the pump | WQ |
| Drive Type | electric |
| Feed height, m | 5 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 55 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 960 |
| Application | КНС, отведения стоков, септика, канализации, treatment facilities |

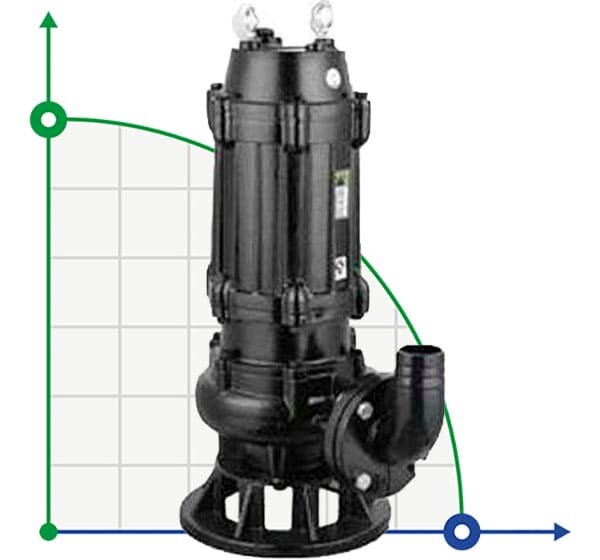

Download instructions, catalog for 500 WQ 2200-5-55 Sanitary pump for wastewater disposal
