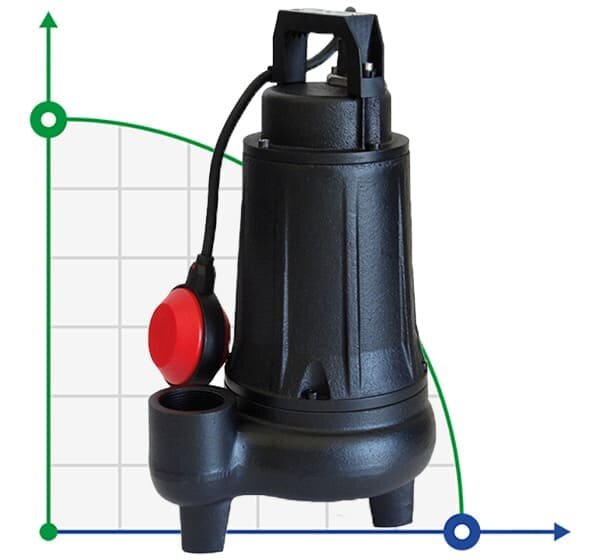

Dreno ALPHA V EVO 3T/G fecal submersible pump with Vortex impeller

Code: 2001084
(0 review)
ProducerDreno
Max. head, m11.5
PumpTypesubmersible drainage and fecal
Output pipe diameterG1 1/2
Max.temperature, C40
Weight, kg18
Max.diameter of solid inclusions, mm35
Max.flow rate, m3/h21.6
Explosion protectionNo
Pump capacity, cu.m/hour21.6
Serial number of the pumpALPHA V EVO
Drive Typeelectric
Feed height, m11.5
Country of OriginItaly
Power capacity, kW0,75
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 850
ProtectionIP68
Housing materialСast iron
SealDouble Mechanical Seal, CA/CE/Viton - SIC/SIC/Viton
Shaft materialAISI 420
Installation Typevertical
Impeller materialcast iron
Maximal altitude of immersion under the water surface, m20
Impeller typevortex impeller
Show all features (25)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$952.45 (netto)
Добавить в сравнение
We deliver anywhere in the world
Pump application: the Alpha V series is ideal for pumping domestic wastewater due to its small size and mechanical characteristics. Feature: the main components are made of GG20 cast iron in the standard configuration, a cuff seal is installed on the engine side, and a mechanical seal on the impeller side is also available on request in the new " EVO " version with a double mechanical seal at the rear located in the oil chamber. Motor range: 2-pole short-circuited rotor motor; thermal protection integrated in the winding; insulation Class F 155°C; motor protection class IP68. Engine cooling: the engine is cooled by the liquid in which the pump is immersed. Limits of use: maximum permissible liquid temperature: 40°C when the pump is fully submerged; maximum immersion depth: 20 m; permissible pH value: 6-10; hydraulic characteristics suitable for liquids with a density <1.1 kg / DM3; permissible voltage: 220v / 380V ±5%; additional
ProducerDreno
Max. head, m11.5
PumpTypesubmersible drainage and fecal
Output pipe diameterG1 1/2
Max.temperature, C40
Weight, kg18
Max.diameter of solid inclusions, mm35
Max.flow rate, m3/h21.6
Explosion protectionNo
Pump capacity, cu.m/hour21.6
Serial number of the pumpALPHA V EVO
Drive Typeelectric
Feed height, m11.5
Country of OriginItaly
Power capacity, kW0,75
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 850
ProtectionIP68
Housing materialСast iron
SealDouble Mechanical Seal, CA/CE/Viton - SIC/SIC/Viton
Shaft materialAISI 420
Installation Typevertical
Impeller materialcast iron
Maximal altitude of immersion under the water surface, m20
Impeller typevortex impeller
