Vacuum pump 2BV5161 Ex (AISI 316)

Code: 1041566
(0 review)
ProducerBTS Engineering
MaterialAISI 316 stainless steel
PumpTypevacuum
Output pipe diameterDN80
Input pipe diameterDN80
Material of flow channelAISI 316 stainless steel
Weight, kg330
Max.flow rate, m3/h500
Explosion protectionYes
Noise level ,dB74
Pump capacity, cu.m/hour500
Availability of spare partsYes
Serial number of the pump2BV
Drive Typeelectric
Power capacity, kW15
Rate of turn, rpm970
Type of configurationwith engine
Impeller materialAISI 316 stainless steel
Vacuum depth, mBar33
Flow, l/min20
Applicationвыпарки, автоклав, выпарных аппаратов
Analogue forElmo rietschle, Becker, Italvacuum, Robuschi, EVP, Вакууммаш, ВВН, Busch, Pompetravaini TRM, Nitto, DVP, Sterling
Show all features (22)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$10,630.13 (netto)
Добавить в сравнение
We deliver anywhere in the world
2BV5161 Vacuum Water Ring Pump - VWR only water can be used as a working medium. The vacuum water ring pump is used in systems for pumping inert gases insoluble in water, corrosive gases or simply for air vacuuming (creating a vacuum). "Water-ring" means that the working fluid is water. The wide application speaks to the versatility of the unit and its performance properties. Features: - Coaxial connection of pump and motor saves space - Imported bearings. - Standard mechanical sealing is used to eliminate leaks and ease maintenance. The noise level can be as low as 62 dB. - The pump casing is made of corrosion-resistant stainless steel and the impeller is made of bronze. - The 2BV vacuum pump is widely used in the chemical, medical, food, sugar industries, etc.
ProducerBTS Engineering
MaterialAISI 316 stainless steel
PumpTypevacuum
Output pipe diameterDN80
Input pipe diameterDN80
Material of flow channelAISI 316 stainless steel
Weight, kg330
Max.flow rate, m3/h500
Explosion protectionYes
Noise level ,dB74
Pump capacity, cu.m/hour500
Availability of spare partsYes
Serial number of the pump2BV
Drive Typeelectric
Power capacity, kW15
Rate of turn, rpm970
Type of configurationwith engine
Impeller materialAISI 316 stainless steel
Vacuum depth, mBar33
Flow, l/min20
Applicationвыпарки, автоклав, выпарных аппаратов
Analogue forElmo rietschle, Becker, Italvacuum, Robuschi, EVP, Вакууммаш, ВВН, Busch, Pompetravaini TRM, Nitto, DVP, Sterling
Loading...
Products from the same category
Vacuum pump 2BV2061 (AISI 316) Ex
1026923
Producer
BTS Engineering
Material
AISI 316 stainless steel
Preorder
0
$3,567.90
Vacuum pump 2BV5131 Ex
1035084
Producer
BTS Engineering
Material
cast iron
Preorder
0
$5,449.42
Vacuum pump 2BV5131 Ex (AISI 316)
1039788
Producer
BTS Engineering
Material
AISI 316L
Preorder
0
$7,324.46
Vacuum pump 2BV5121 (AISI 316)
1039792
Producer
BTS Engineering
Material
AISI 316L
Preorder
0
$4,929.42
Vacuum pump 2BV5111, Ex
1041383
Producer
BTS Engineering
Material
cast iron
Preorder
0
$4,929.06

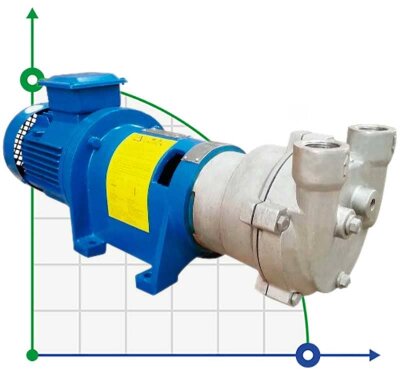

Vacuum pump 2BV6131 (AISI 316)
1044044
Producer
BTS Engineering
Material
AISI 316 stainless steel
Preorder
0
$5,969.01
Vacuum pump SK-20 with engine
1019011
Producer
BTS Engineering
Material
cast iron
Preorder
0
$20,590.20

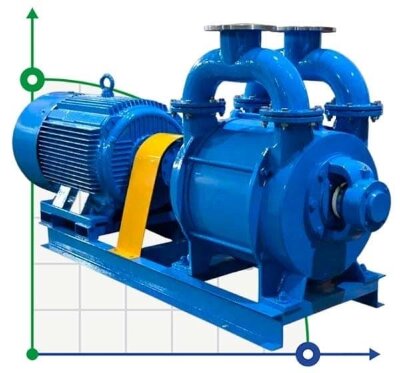

Vacuum pump SK-20 with engine (AISI 316)
