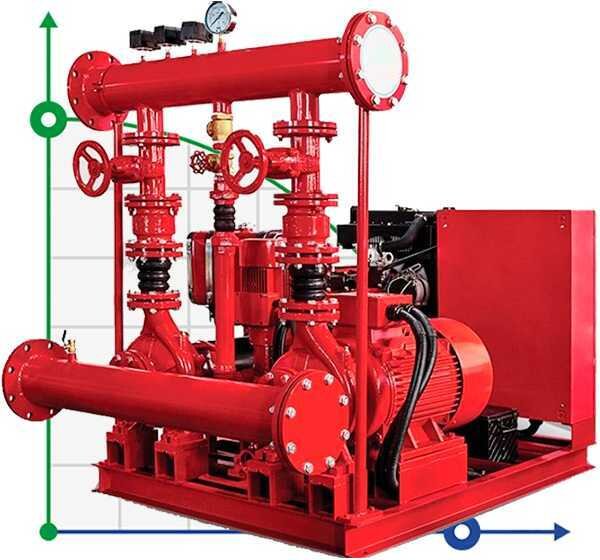

BEDJ 2500/8-220-225-30 (158 l/s, 80m, 160kW) Fire Fighting System

Click image for a larger view

More +1

Code: 1025481

(0 review)

Producer	BTS Engineering
Material	cast iron
Max.temperature, C	120
Pump capacity, cu.m/hour	568
Feed height, m	80
Country of Origin	China
Warranty, months	12
Power capacity, kW	160
Power supply	3х380 V, 50 Hz
Nom.flow rate, m3/h	568
Nom.head, m	80
Diesel pump power, kW	168
Jockey pump power, kW	22
Specific fuel consumption in g/kWh	204
Application	аварийного водоснабжения, пожаротушения
Analogue for	Hobart, Odwerk, Omnigena, Onga, Honda, Hydro-Vacuum, HYPRO, Johnson, Kenle, KOLMEKS, Flygt, Foras, FRISTAM, Hidrostal, Hilge, Calpeda, LOWARA, ASTA, Varna, Bronzoni, Aquatechnika, Cornell, Aquario, APV, Ebara, Alweller, DPPumps, DAB, Nocchi, Kripsol, Simaco, INOXPA, KSB, Wilo, SIHI, Allweiler, Varisco, CAPRARI, Rovatti, Sterling, ThuneEureka, Unitech, Zenit, SAER, PERKINS, Pentax, PentairSwimmey, Packo, TEREX, TAJFUN, Svanehoj, Sprut, Speroni, SOMA, Greenpumps, OMAC, GEA, Grundfos

Show all features (16)

Documentation

Description BEDJ 2500/8-220-225-30 (158 l/s, 80m, 160kW) Fire Fighting System

BEDJ Version: Fire pump set consists of Electric pump+Diesel pump+Jockey pump and all accessories DESCRIPTION: - Fire pumps are designed for whole operational life, the maximum reliability is always the first priority - The components affixed onto a steel framing structure - Each controller has its own individual pressure sensing line - The suction line should never include a strainer - Check valve and butterfly valve in the discharge line - NFPA 20 not allows suction from negative level for end suction and split case pumps PRINCIPLE: When pressure drops below the set value, jockey starts running with the signal from the pressure switch and continues running for 10 minutes till the system pressure reaches the set value. If the pressure continues drop, first the main pump starts to run. If the system pressure can't supply and pressure continues drop,the standby pump starts to run.

Category: Water Supply and Fire Fighting Stations, Motor Pumps

Features BEDJ 2500/8-220-225-30 (158 l/s, 80m, 160kW) Fire Fighting System

Producer	BTS Engineering
Material	cast iron
Max.temperature, C	120
Pump capacity, cu.m/hour	568
Feed height, m	80
Country of Origin	China
Warranty, months	12
Power capacity, kW	160
Power supply	3х380 V, 50 Hz
Nom.flow rate, m3/h	568
Nom.head, m	80
Diesel pump power, kW	168
Jockey pump power, kW	22
Specific fuel consumption in g/kWh	204
Application	аварийного водоснабжения, пожаротушения
Analogue for	Hobart, Odwerk, Omnigena, Onga, Honda, Hydro-Vacuum, HYPRO, Johnson, Kenle, KOLMEKS, Flygt, Foras, FRISTAM, Hidrostal, Hilge, Calpeda, LOWARA, ASTA, Varna, Bronzoni, Aquatechnika, Cornell, Aquario, APV, Ebara, Alweller, DPPumps, DAB, Nocchi, Kripsol, Simaco, INOXPA, KSB, Wilo, SIHI, Allweiler, Varisco, CAPRARI, Rovatti, Sterling, ThuneEureka, Unitech, Zenit, SAER, PERKINS, Pentax, PentairSwimmey, Packo, TEREX, TAJFUN, Svanehoj, Sprut, Speroni, SOMA, Greenpumps, OMAC, GEA, Grundfos
