Fire pump station BPDD 1500/7-170-170

Click image for a larger view

Code: 1035616

Producer	BTS Engineering
Max. head, m	84
PumpType	console
Output pipe diameter	DN 200
Input pipe diameter	DN200
Material of flow channel	cast iron
Max.temperature, C	120
Max.flow rate, m3/h	600
Explosion protection	No
Drive Type	internal combustion engine
Country of Origin	China
Warranty, months	12
Rate of turn, rpm	3 000
Nom.pressure, Mpa	1,6
Installation Type	horizontal
Nom.flow rate, m3/h	360
Nom.head, m	78
Diesel pump power, kW	132
Specific fuel consumption in g/kWh	204
Analogue for	Onga, KOLMEKS, Kenle, Johnson, HYPRO, Hydro-Vacuum, Honda, Omnigena, Foras, Odwerk, Nocchi, LOWARA, Kripsol, Simaco, SAER, Flygt, FRISTAM, Pentax, APV, Varna, Bronzoni, ASTA, Aquatechnika, Aquario, Ebara, Hidrostal, Alweller, DPPumps, DAB, Cornell, Calpeda, Hobart, Hilge, PERKINS, PentairSwimmey, INOXPA, KSB, Packo, Wilo, SIHI, Allweiler, Varisco, TEREX, TAJFUN, Svanehoj, Sprut, Speroni, SOMA, Greenpumps, OMAC, Zenit, Unitech, ThuneEureka, Sterling, Rovatti, CAPRARI, GEA, Grundfos

Show all features (20)

Documentation

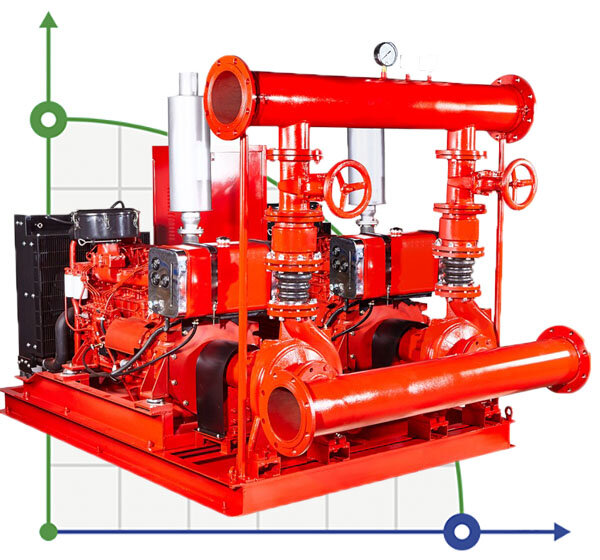

Description Fire pump station BPDD 1500/7-170-170

Diesel pump station based on two cantilever pumps, which are driven by diesel engines. The pump station can work in the mode of the working reserve, the working auxiliary pump depending on wishes of the customer. The delivery set, in addition to the main elements (pumps, diesel engines, frame) includes: cooling radiator, power take-off shaft, air filter, controller, muffler, tool box, diesel tank, water tank and the like. Also included Control cabinet (1 piece) Suction collector DN200 (1 piece) Pressure head collector DN200 (1 piece) Latches DN200 (2 pieces) Check valves DN200 (2 pcs) Vibrating inserts DN200 (2 pieces) Adjustable pressure relay, pressure gauge, support stand (2 pcs.), 150HA battery (4 pcs.), Mounted base frame, wooden box.

Category: Water Supply and Fire Fighting Stations, Motor Pumps

Features Fire pump station BPDD 1500/7-170-170

Producer	BTS Engineering
Max. head, m	84
PumpType	console
Output pipe diameter	DN 200
Input pipe diameter	DN200
Material of flow channel	cast iron
Max.temperature, C	120
Max.flow rate, m3/h	600
Explosion protection	No
Drive Type	internal combustion engine
Country of Origin	China
Warranty, months	12
Rate of turn, rpm	3 000
Nom.pressure, Mpa	1,6
Installation Type	horizontal
Nom.flow rate, m3/h	360
Nom.head, m	78
Diesel pump power, kW	132
Specific fuel consumption in g/kWh	204
Analogue for	Onga, KOLMEKS, Kenle, Johnson, HYPRO, Hydro-Vacuum, Honda, Omnigena, Foras, Odwerk, Nocchi, LOWARA, Kripsol, Simaco, SAER, Flygt, FRISTAM, Pentax, APV, Varna, Bronzoni, ASTA, Aquatechnika, Aquario, Ebara, Hidrostal, Alweller, DPPumps, DAB, Cornell, Calpeda, Hobart, Hilge, PERKINS, PentairSwimmey, INOXPA, KSB, Packo, Wilo, SIHI, Allweiler, Varisco, TEREX, TAJFUN, Svanehoj, Sprut, Speroni, SOMA, Greenpumps, OMAC, Zenit, Unitech, ThuneEureka, Sterling, Rovatti, CAPRARI, GEA, Grundfos
