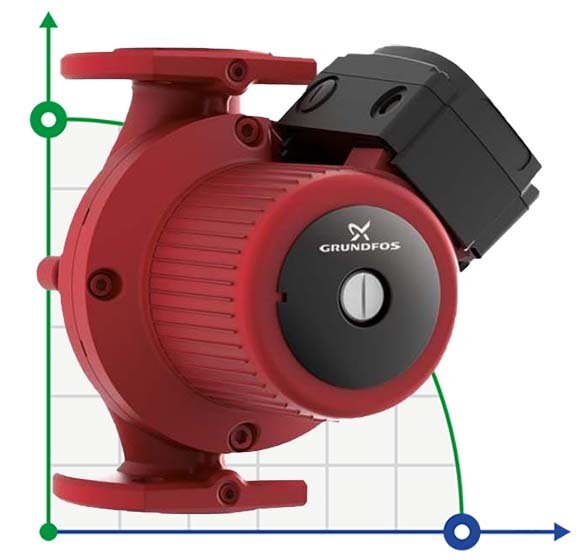

Circulation pump UPS 32-120 F 3x400-41

Code: 96401839
(0 review)
ProducerGRUNDFOS
Materialcast iron
Max. head, m12
PumpTypewith wet rotor
Output pipe diameterG1 1/4
Input pipe diameterG1 1/4
Weight, kg17
Max.flow rate, m3/h14
Explosion protectionNo
Pump capacity, cu.m/hour14
Serial number of the pumpUPS
Drive Typeelectric
Feed height, m12
Country of OriginDenmark
Power capacity, kW0,4
Dimensions, mm220x220x324
Power supply3х380 V, 50 Hz
Installation Typehorizontal
Pressure, bar10
Installed length mm220
Frequency controlno
Show all features (21)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$761.75 (netto)
Добавить в сравнение
We deliver anywhere in the world
The Grundfos UPS 32-120 F circulation pump is designed for work related to pumping water in heating systems. The motors are equipped with a wet rotor and a protected stator with an inline layout. They are made without gland seals and are maintenance-free. They are equipped with opposite connecting pipes of the same nominal internal diameters. The pump has a built-in flow control flapper that prevents the formation of a backflow in the pump when it is not in operation. Clean, liquid, non-aggressive and explosion-proof media without mineral oils, solid or long-fiber inclusions are used as working media. The motor is suitable for pumping cold water. It can be used in continuous operation. Applications: single-pipe and two-pipe heating systems; main pumps; zone pumps; parallel suction boiler pumps; pumps for heated surfaces; water heaters; underfloor heating systems; solar heating systems; heat pump systems; geothermal heating systems; heat recovery systems; two-pipe air conditioning systems.
ProducerGRUNDFOS
Materialcast iron
Max. head, m12
PumpTypewith wet rotor
Output pipe diameterG1 1/4
Input pipe diameterG1 1/4
Weight, kg17
Max.flow rate, m3/h14
Explosion protectionNo
Pump capacity, cu.m/hour14
Serial number of the pumpUPS
Drive Typeelectric
Feed height, m12
Country of OriginDenmark
Power capacity, kW0,4
Dimensions, mm220x220x324
Power supply3х380 V, 50 Hz
Installation Typehorizontal
Pressure, bar10
Installed length mm220
Frequency controlno
