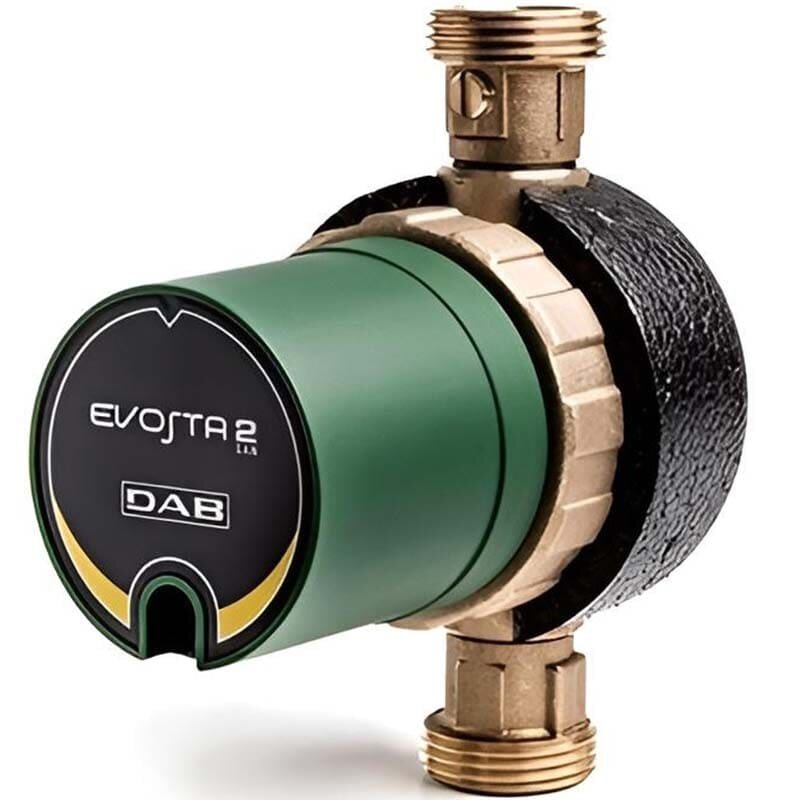

DAB Evosta 2 San is a wet rotor circulation pump designed for hot water circulation in small hot water supply systems in domestic and residential installations.
Synchronous motor. Threaded suction and delivery ports. Brass pump housing.
Sustainable energy saving - the circulator's power consumption is only 7 W.
TECHNICAL DATA:
Operating range: 0–0.6 m³/h at a head of up to 1.1 m.
Liquid temperature range: from +2 °C to +75 °C.
Operating pressure: 10 bar (1000 kPa).
Degree of protection: IP42.
Motor insulation class: II.
Installation: stationary, with horizontal motor shaft.
Standard power supply: single-phase 1×230 V, 50/60 Hz.
Pumped liquid: clean, free of solids and mineral oils, low-viscosity, chemically neutral.
Water quality: clean, free of solids or abrasives, low-viscosity, non-aggressive, non-crystallized and chemically neutral.
