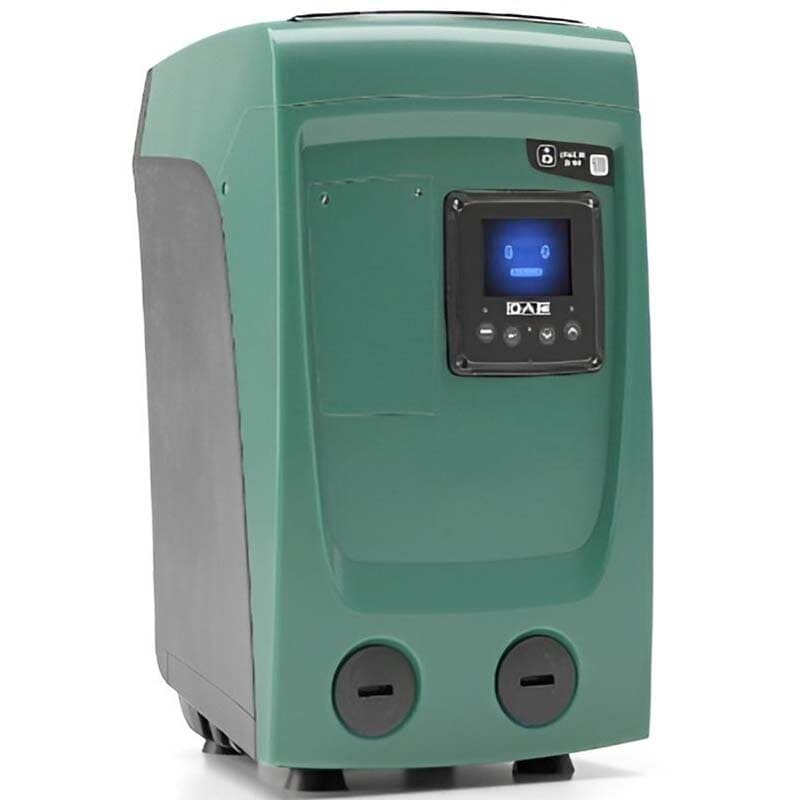

DAB ESYBOX MINI³ automatic pressure boosting pump station.
Electronic self-priming system for pressure boosting, rainwater reuse, groundwater, gardening and irrigation in the maintenance of residential and commercial buildings. It is possible to create groups of two pumps. Supports remote control function thanks to the DConnect service integrated directly into the system. Can be installed vertically, horizontally or on the wall using special accessories (supplied separately).
TECHNICAL DATA:
Performance: up to 4.8 m³/h.
Head: up to 55 m.
Type of pumped liquid: clean, free of solid or abrasive impurities, non-viscous, non-aggressive, non-crystallized and chemically neutral.
Liquid temperature range: from 0 °C to 35 °C for domestic use for other uses: from 0 °C to 40 °C.
Maximum ambient temperature: 50 °C.
Maximum suction depth: 8 m.
Maximum operating pressure: 750 kPa.
Motor protection degree: IPX4.
Motor insulation class: F.
Impeller material: Technopolymer.
Single-phase input power: 230 V 50 Hz.
Built-in expansion tank.
Power cord (m) and plug: 1.5 meters with plug.
Installation type: Stationary, vertical, horizontal or on the wall using special accessories (supplied separately).
Certification: WRAS, ACS.
Water quality: clean, free of solid or abrasive particles, non-viscous, non-aggressive, non-crystallized and chemically neutral.
