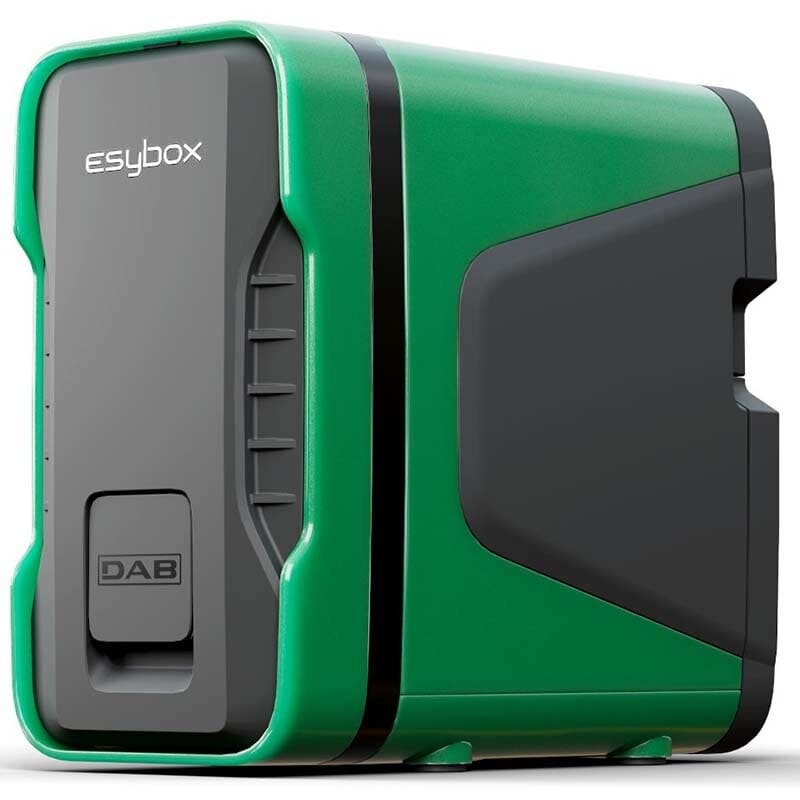

DAB Esybox Pop is an electronic pressure boosting system for small residential buildings. Equipped with sound-absorbing materials and a water-cooled permanent magnet motor for quiet operation.
Professional performance is achieved thanks to modern features:
• anti-cycling protection — detects leaks by the frequency of starts/stops;
• automatic shutdown in case of “dry running”;
• frost protection system (activation at temperatures below 5 °C);
• motor protection during long downtimes;
The built-in connection system allows you to configure parameters via a smartphone and use cloud services without additional accessories.
Remote control via the H2D application.
TECHNICAL DATA:
Operating range:
performance up to 3.9 m³/h; head up to 32 m.
Pumped liquid: clean, free of solid or abrasive particles, low-viscosity, non-aggressive, non-crystallised and chemically neutral.
Liquid temperature range:
from +5 °C to +50 °C.
Maximum ambient temperature: +50 °C.
Maximum operating pressure: 6 bar (600 kPa).
Degree of protection: IPX5.
Insulation class: F.
Installation: vertical or wall-mounted (using the appropriate accessory).
Water quality: clean, free of solid or abrasive particles, low-viscosity, non-aggressive, non-crystallised and chemically neutral.
