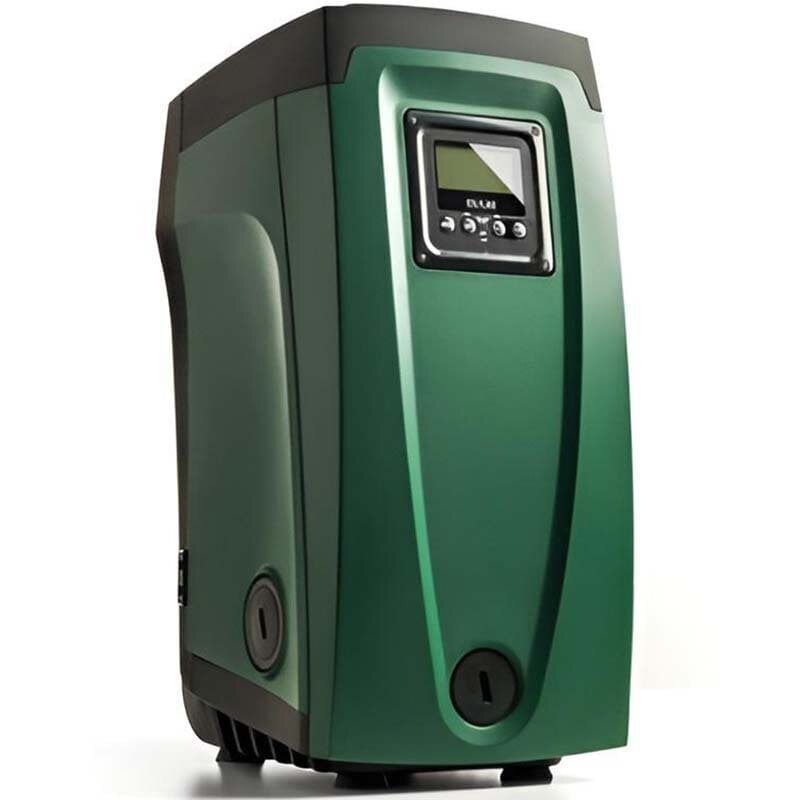

DAB ESYBOX automatic pressure boosting pump station
Electronic self-priming system for pressure boosting, rainwater reuse, groundwater, gardening and irrigation in residential and commercial buildings. Groups of up to four pumps can be created. Supports remote control function thanks to the DConnect service integrated directly into the system. Can be installed vertically, horizontally or on the wall using special accessories (supplied separately).
TECHNICAL DATA:
Flow rate (range): Up to 7.2 m³/h.
Head: Up to 65 m.
Type of pumped liquid: Clean, free of solids or abrasives, non-viscous, non-aggressive, non-crystallized and chemically neutral.
Maximum liquid temperature: 40 °C.
Maximum room temperature: 50 °C.
Maximum suction depth: 8 m.
Maximum operating pressure: 800 kPa.
Motor protection class: IP X4.
Motor insulation class: F.
Impeller material: Technopolymer.
Single-phase input power: 230 V 50 Hz.
Built-in expansion tank.
Power cord (m) and plug: 1.5 meters with plug.
Installation type: Fixed, vertical, horizontal or on the wall using special accessories (supplied separately).
Certification: WRAS, ACS.
Water quality: clean, free of solid or abrasive particles, non-viscous, non-aggressive, non-crystallized and chemically neutral.
